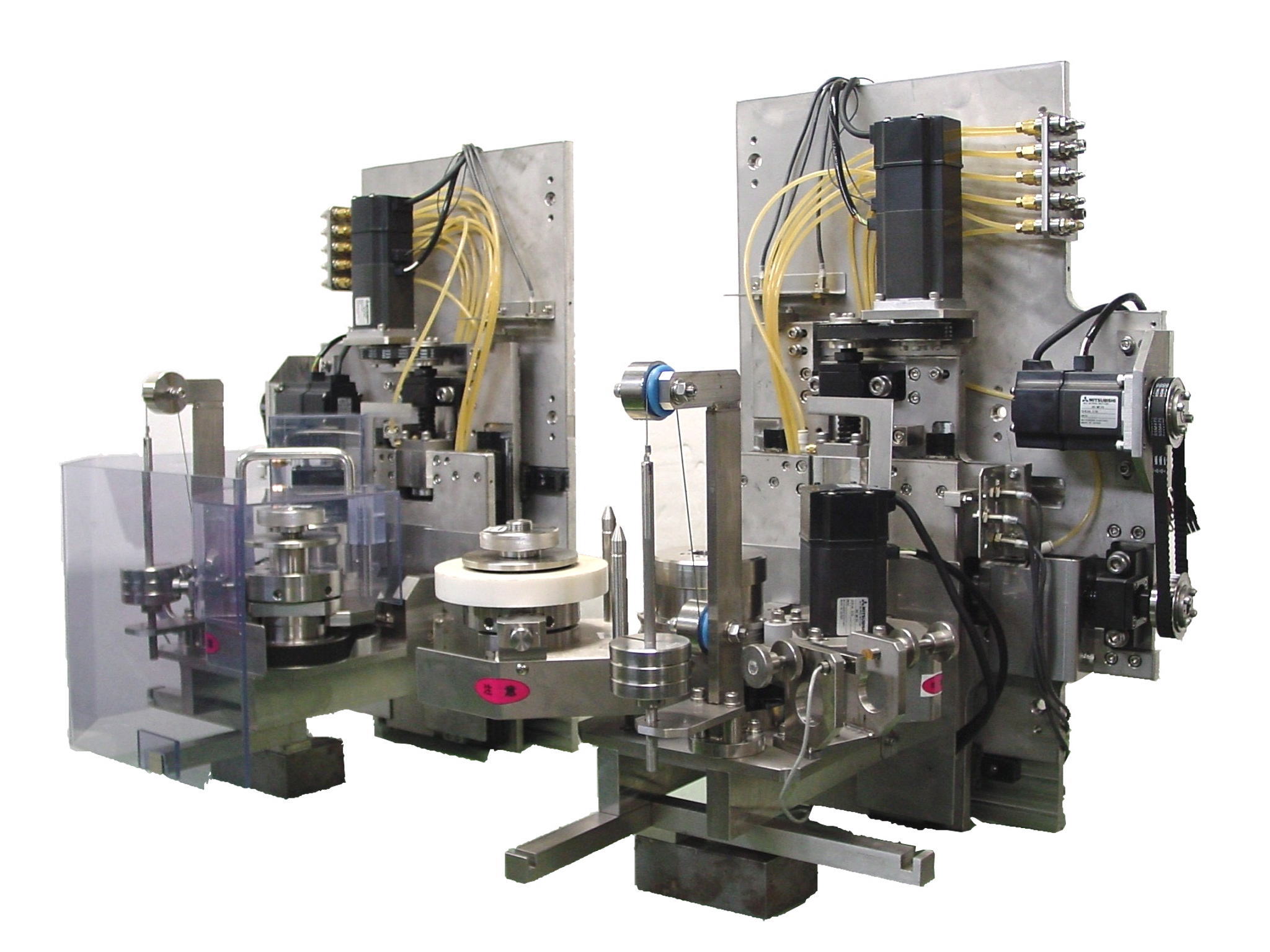

| L.C.GLASS EDGE GRINDING C/P UNIT |
| SG-C/P-EGM-S |
| - HONESTY - |
 |
 |
|
This unit can be installed on automatic edge grinding ,
| polishing equipment of L.C.Glass substrate & Ceramics...
|
 |
 |
- L.C.Glass,common glass & ceramic plate edge can be ground smoothly with constant pushing force of the wheel.(non defective ratio rise)
- Grinding wheel dose not give shock force for work during under operation. so,grinding wheel life is extended substantially.
- This machine is automatic processing equipment and grinding wheel is adjustable automatically,in accordance with value that gave previous information.
|
|
 |
| |
SG-C/P-EGM-S |
| Spindle type |
Constant pressure type |
Spindle driving motor
| AC200V 3Φ 60Hz 0.4KW Servo motor |
| r.p.m of spindle wheel |
|
| Applicable glass size |
15㎜ｘ15㎜（MIN)～100㎜ｘ100㎜（MAX) |
| Thickness |
0.7㎜ｘ4㎜ |
| Grinding method |
Wet grinding |
| X-Z axes wheel transfer equpiment |
●X axis moving distance : 40㎜
●Z axis moving distance : 30㎜
|
| Driving motor for X-Z stage |
●X axis motor : 200V x 200W
●Z axis motor : 200V x 200W
|
| Outside dimention of equipment |
540L x 650H x 460W |
|
|
|
| |
