Edge processing of the Variant-shaped Glass is possible very precisely！！ As for Honesty SG FOUR-15CCD, both highly precise processing and mass productions
of the tablet size are possible!
Mobile Telephone, Glass for liquid crystal displays, Glass boar , Silicon
wafer, Organic electroluminescence, Glass for CCD cameras, LED etc...
It is the CNC processing equipment which is ultrahigh speed , amount of precision machining in high efficiency to win by numerical control precisely.
The glass which set for the Loader completes all processing(Circumference,
Chamfering, Hole Internal circumference, Hole chamfering), the glass is
done from the Unloader.
Honesty SG FOUR-15CCD has 2 tables（NO.Ⅰturntable&NO.Ⅱturntable）
By work positioning function（Positioning Solution System (imaging system with 2 million
pixels of cameras) to process work with the patterning)and use of product made in
Special TOOL(by SGI), highly precise processing is enable.
As for the work supply and the takeoff, it is possible for the unmanned driving for the long time by short cycle time by adopting a cassette method or a conveyer method.

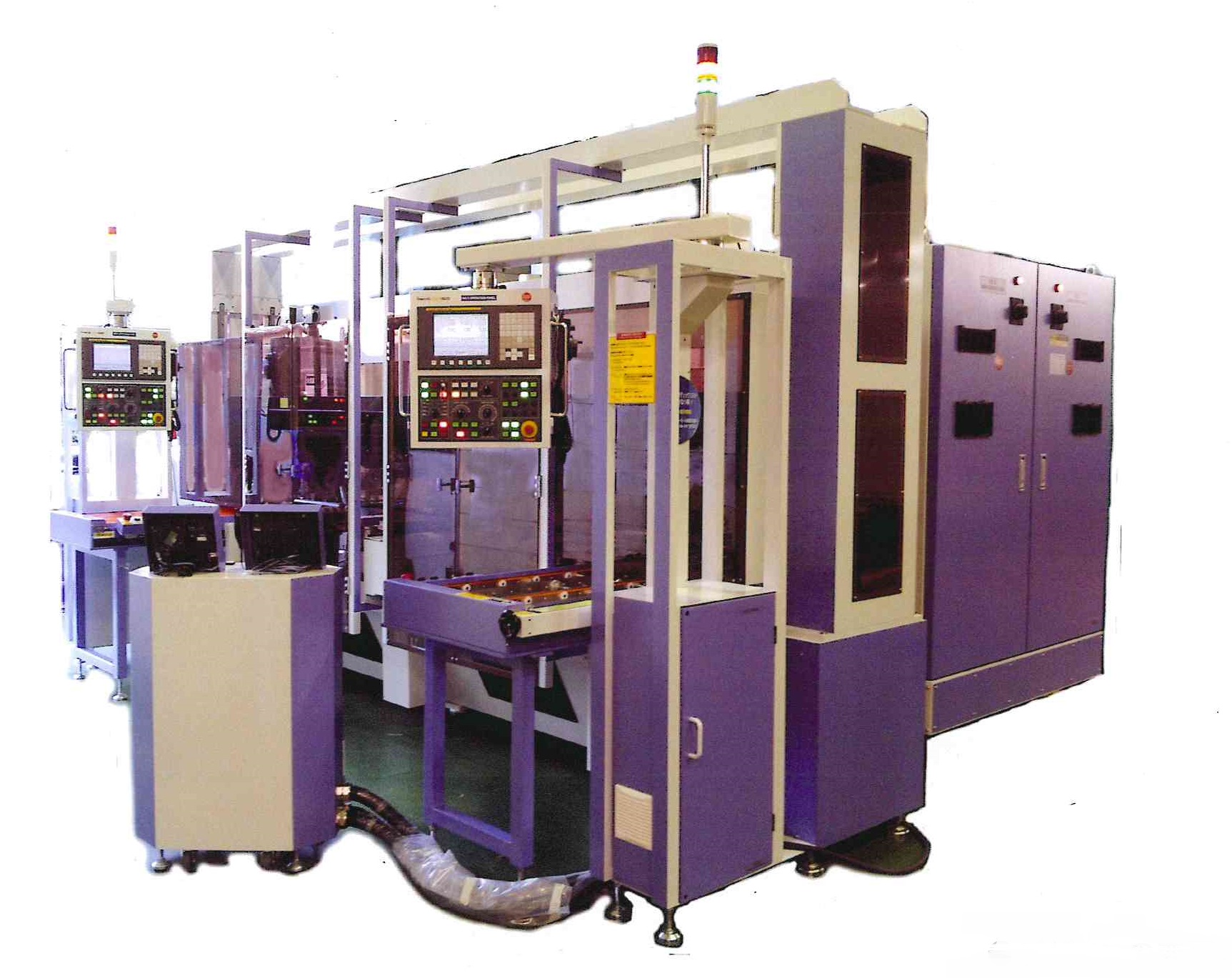

Honesty SG FOUR-15CCD
Turntable
2 Sets
Main Stage (Direct current brushless spindle motor)
4 Stage
Main axis number of revolutions
NC Unit
FANUC
MainControlPanel
2 Sets
Spindle right and left stroke (X axis)
290mm
Spindle fore and back stroke (Y axis)
420mm
Spindle Up and Down stroke (Z axis)
100mm
Forwarding speed (X, Y axis)
100～10,000mm/min
Forwarding speed (Z axis)
5～5,000mm/min
Work set method*1
Positioning Solution System (with 2million pixels of camera)
